Water & Oil Feed Line Support Bracket


Suit Ford XR6 Turbo

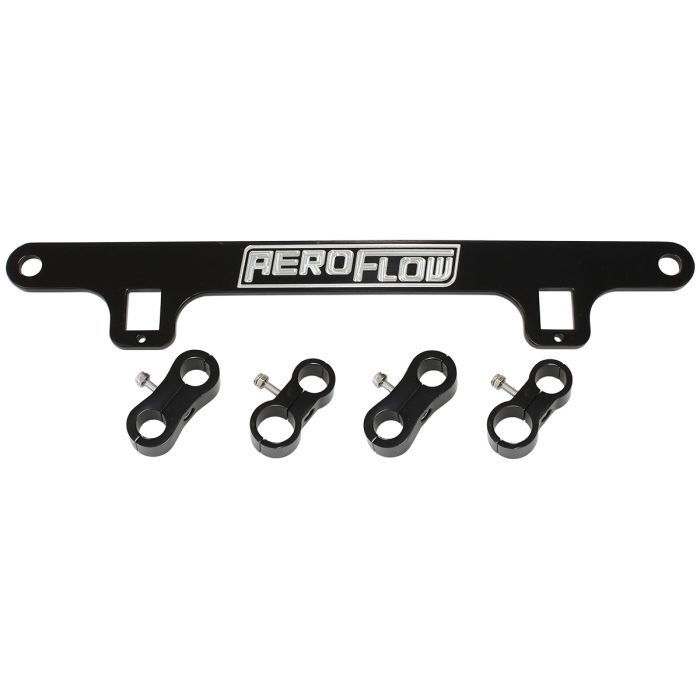

The Aeroflow Performance turbo and water line support bracket is designed for the turbocharged Ford Barra motor to secure the turbo oil and water feed lines from falling onto the drive belt. A quick and easy bolt on design that utilises the 2 front timing case bolts on the front of the engine. This kit comes with two sets of different sized billet separators to suit most custom applications. One set is stepped with I.D's of 11.1mm and 14.2mm and the second set has an I.D. of 14.2mm on both sides.

Dimensions:

Overall Length - 270mm (10-5/8”).

Overall Width - 44mm (1-47/64”).

Thickness - 4mm (5/32”).

Includes two different sets of dual billet separators:

AF156-07-09BLK (11.1mm and 14.2mm internal diameter)

AF156-09BLK (14.2mm internal diameter

SKU AF64-4369
Brand Aeroflow
