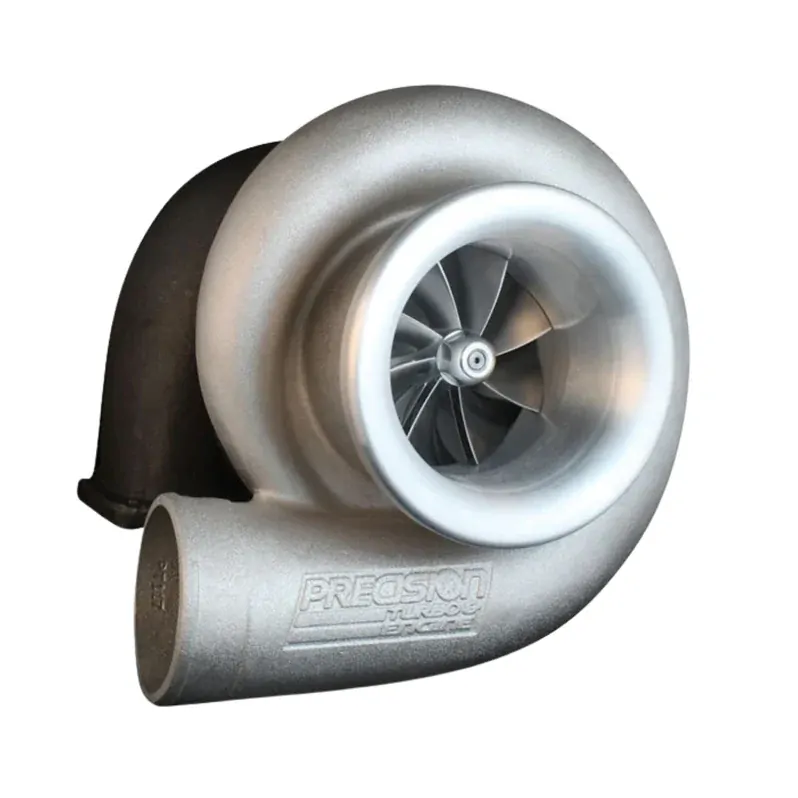

The most powerful single turbo setup on the planet is about to get even more aggressive. Our record-breaking 118 GEN2 Large Frame turbocharger is being replaced by the all-new NEXT GEN 122mm Large Frame turbocharger.

Bringing the latest advancements from our NEXT GEN turbo lineup, this redesigned turbocharger features an all-new compressor wheel and enhanced compressor cover, taking your single turbo build to the next level.

Key Features:

  • Exclusive NEXTGEN CEA® (Competition Engineered Aerodynamics) 122mm compressor
  • Large frame compressor cover with a smooth, 7" radiused inlet
  • Air-cooled, dual ceramic ball-bearing CHRA for maximum durability and response
    High-flow, highly efficient 114mm CEA turbine wheel

Recommended Accessories (Sold Separately):

  • Oil Feed Fitting: PFT047-3047
  • Oil Drain Flange: PTP074-2102 / PTP074-2104
  • Turbine Housing Inlet Flange: PTP074-1014
  • Turbine Housing Outlet Flange: PTP074-3029 / PTP074-3030
  • Turbine Housing Outlet Clamp: PTP071-1035
  • Turbo Speed Sensor: PEL015-9500
  • CCP Comp Cover Safety Blanket: THR-05
  • T5/T6 Turbine Inlet Gasket: PTP075-5009

Specifications:

  • Compressor Wheel Inducer: 121.92mm
  • Compressor Wheel Exducer: 152.40mm
  • Turbine Wheel Inducer: 130.56mm
  • Turbine Wheel Exducer: 114.30mm
  • Max Shaft Speed: 94,153 RPM
  • Turbine Housing Options: 1.32 & 1.50 A/R T5 Inlet / V-Band Discharge

The evolution of high-performance turbocharging continues with Precision's latest innovation. Get ready to push the limits like never before!

SKU 27618436489
Brand Precision Turbo & Engine
