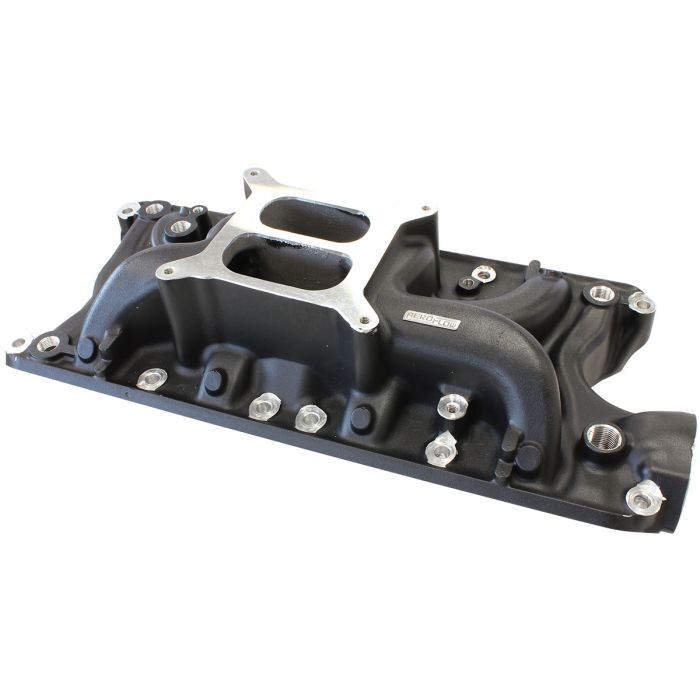

SB Ford 289-302 Windsor Street Dual Plane Intake Manifold, Black Finish


1500 - 6500 RPM, Square Bore Carburettor Pad, Non-EGR

Get the maximum power from your carburetted engine with this Street Small Block Ford carburetted cast intake manifold. This dual-plane intake manifold is designed to keep your air and fuel distribution going into the engine at a steady and even flow for maximum performance and efficiency. The carburettor-mounting pad is designed to accept aftermarket square-bore carburettors with either manual or electric choke options available on today’s market. Specifically designed for 260-302 cubic inch small-block Ford engines operating in the 1500 to 6500 rpm range. In most cases, these manifolds accept late model water necks, air conditioning, alternator and H.E.I. ignition systems.

• Fits Small Block Ford 289 and 302 Windsor Engines.

• Dual Plane Configuration.

• RPM operating range - 1500 to 6500.

• Natural Cast Finish.

Manifold Specifications

- Square bore carburettor pad
- Overall height (Carb pad to bottom of manifold) is 134mm
- Port Size: 1.05" x 1.90"
- Intake manifold gasket, Fel Pro 1250
- 5/16-18" carburettor studs (x4)
- 5/16-18" mounting holes (x2)
- 3/8-16" accessory mounting holes (x1)
- 1/4-20" accessory mounting holes (x1)
- 1/2" NPT ports (x1)
- 3/8" NPT ports (x3)

SKU AF6210-2000
Brand Aeroflow
Unit Of Measure Each
