Dual Ceramic Ball Bearing System
10 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
Inconel 713c 10 Blade Turbine Wheel with High Horsepower
Cover Integrated with the Speed Sensor Port
0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet, T4 0.82 V-Band outlet etc. turbine housings in option
V-Band Flange kit(s) for the exhaust housing included
Max Air Flow rate: ~90 lb/min, rated @ 1000 FWHP
Stronger Turbine Wheel for High flow


Compressor Wheel: 67*84mm
Turbine Wheel: 74*66mm
Compressor Inlet: 4.0” Hose
Compressor Outlet: 2.5” Hose
Turbine Inlet: T3, T4, or 2.5? V-Band
Turbine Outlet: 3? V-Band (3.55?OD)
Oil Feed: -4 AN connect to the Oil Restrictor
Oil Drain: Std T3 Flange
Water In/Outlet: M14*1.5
We highly recommended running water cooling for better durability

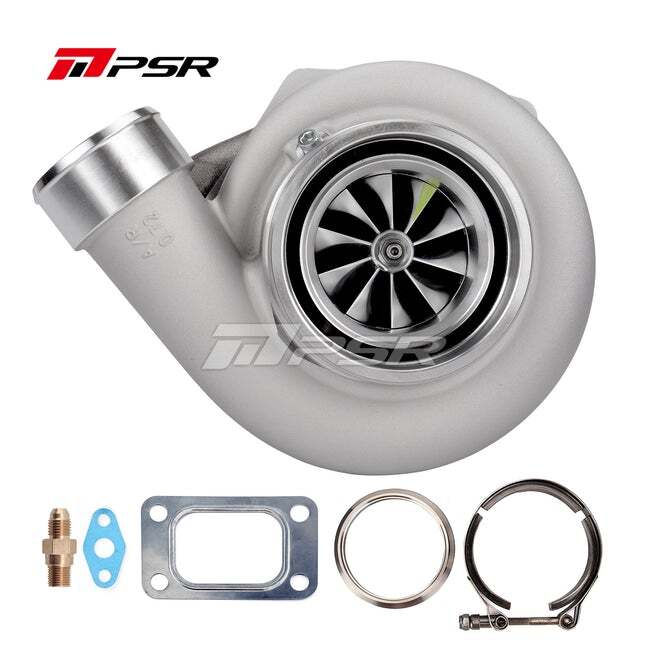

Based off our popular GTX3584RS series turbo, This is very similar but with the larger 66mm rear wheel.
PSR3584 GEN3 TURBO comes with stronger turbine wheel for high flow.

SKU 1034
Brand Pulsar Turbo Systems
Shipping Weight 0.0020kg
Unit Of Measure ea
