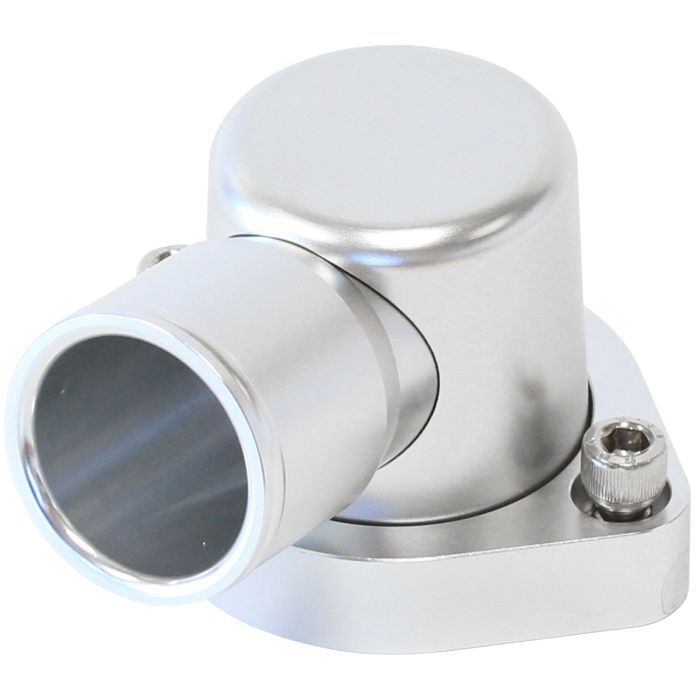

Billet 90° Thermostat Housing - Silver


Suit Ford 302-351C

Suits Ford 302-351 Cleveland (non oem 90 degree swivel)

Accepts Ford Thermostat.

The Aeroflow Performance billet thermostat housings are a three-piece design that allows for correct positioning of the outlet to suit a large array for applications especially in conversions where small can be an issue. Machined from T6-6061 billet aluminium and allows for a full 360-degree swivel rotation for ease of installation. All Aeroflow Performance thermostat housings feature an O-ring base flange, as opposed to using the factory paper style gasket, this ensured a superior leak free seal. Each thermostat housing outlet can be untreated exposing a female 1-1/4”-20 thread to adapt a AN fitting or a larger barb fitting for custom applications. Available in several anodised finishes.

Replacement O-ring and bolts - AF59-2039

NOTE: Will also suit Mazda Rotary engines with slight modifications to enlarge the bolt holes and replace allen key socket cap screws from imperial to metric



Specifications:

Centre to Centre of Bolt Holes - 71.1mm (2-51/64").
Overall Height - 55.85mm (2-3/16").
Overall Length - 86.1mm (3-3/8").
Width of Body - 64.80mm (2-35/64").
Radiator Hose Size - 38.25mm (1-1/2").
Radiator Hose Angle - 15 Degree.

SKU AF64-2039S
Brand Aeroflow
