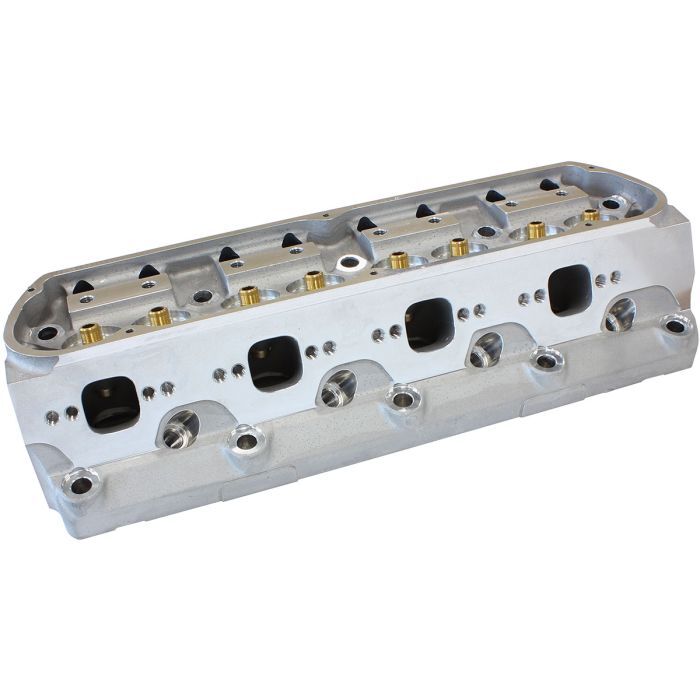

Bare Small Block Ford Windsor 289-351 203cc Aluminium Cylinder Heads with 58cc Chamber (Pair)


2.13" x 1.28" Intake Port, 1.40" x 1.40" Exhaust Port

Head Specifications

Material:  A356 Aluminium
Chamber Chamber:  58cc
Intake Port Volume:  205cc
Intake Port Dimension:  2.13" x 1.28"
Exhaust Port Volume:  71cc
Exhaust Port Dimension:  1.40" H x 1.40" W
Exhaust Port Location:  Raised .250"
Spark Plug Location:  OEM
Intake Valve Diameter:  2.08"
Exhaust Valve Diameter:  1.60"
Valve Stem Diameter:  8mm
Valve Spring Pocket I.D.:  1.64"
Valve Guide Material:  Manganese Bronze
Valve Guide O.D.:  .490" (.560"at base)
Rocker Stud Thread Size: 7/16" x 14
Valve Angle:  20°
Deck Thickness:  .750"

Suggested Components

Head Gasket:  Fel-Pro 1011-1
Intake Gasket (1.28 x 2.13 Port Size):  Fel-Pro 1262
Exhaust Gasket (1.40 x 1.40 Port Size):  Fel-Pro 1487
Head Bolts:  ARP 154-3605 (7/16") or 154-3603 (1/2")
Head Studs:  ARP 154-4003
Spark Plugs (14mm x 3/4" reach with flat gasket seat):  Champion RC9YC

IMPORTANT NOTICE:

We recommend to check installed spring seat pressure & open pressure before installing your cylinder heads to make sure the spring pressure is correct for your application.

SKU AF95-0360
Brand Aeroflow
Unit Of Measure Each
